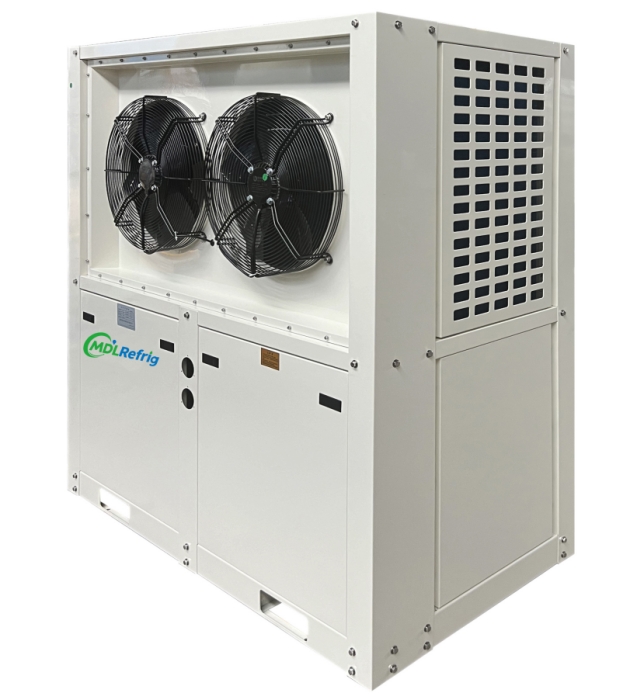

Intelligent Defrost Packaged condensing unit with Scroll compressor box-type intelligent condensing unit scroll packaged chiller for cold room
| Brand Name: | MDL Refrig |
| Place of Origin: | Made In China |
| Minimum Order Quantity: | 1 |
| Payment Terms: | EXW/FOB/CIF |
| Shipping Port: | Guangzhou |
| Packaging Details: | Wooden case |
| Compressor Brand: | Sonyo (other brand required by customers) |
| Refrigerant: | R22,R507A and others |
| Cooling Capacity: | 4.8Kw ~ 94.5Kw |
| Applicable Temperature: | High/Medium/Low Temperature |
| Voltage: | 380V/50Hz/3phase,220V/60Hz/3phase,440V/60Hz/3 phase and other special voltage can be customized. |
| Warranty: | 1 year |
Description
Mondely Refrig packaged scroll intelligent condensing unit adopts a new generation of overall box-type structure, outdoor installation, and small footprint. The compressor adopts a fully enclosed scroll compressor, and the condensing motor adopts a 6-stage inner rotor motor, which is efficient, energy-saving, and quiet, suitable for places with noise requirements. It meets various application scenarios of +12.5～-25℃, with a cooling capacity of 9KW～45KW, and is widely used in cold storage, catering, kitchens, hotels, medicine, commercial centers, wholesale markets and other fields.
Product Features
High refrigeration efficiency, beautiful appearance,energy-saving and efficient, quiet and anti-corrosion
1. Compressor: The Heart of the System
Brand compressor：Bitzer，Refcomp, Frascold，Danfoss Bock，Emerson/Copeland, Hanbell，Fushen，Invotech, China brand are also optional.
2. Condenser
Condensers expel heat absorbed by the refrigerant. They are typically categorized as:
● Air-Cooled Condensers: Use ambient air for cooling, suitable for compact and medium-sized systems.
● Water-Cooled Condensers: Employ water as a cooling medium, ideal for larger installations requiring greater efficiency.
3. Refrigeration Components
These components control the refrigerant flow into the evaporator, optimizing cooling performance while maintaining system efficiency.
If you just need spare parts separately, you could get suitable model and price with the shortest time from us!
Specifications
| SONYO Scroll Compressor Medium-temperature hot gas defrosting complete unit | |||||||||
| Condensing Unit | MDL Condensing unit NO. | MDLW003MSR | MDLW004MSR | MDLW005MSR | MDLW005MSR | MDLW008MSR | MDLW010MSR | MDLW010MSR | MDLW010MSR |
| Distribution power capacity (kw) | 3.2 | 4 | 4.8 | 5.8 | 7.9 | 9.65 | 11.7 | 14.85 | |
| Applicable Temperature | -15℃ to -35℃ | ||||||||
| Refrigerant | R507A( Compressors that support other refrigerants are also available) | ||||||||
| Supplier Power | 380V/3HP/50HZ | ||||||||
| Nominal operating condition | -25℃/45℃ | ||||||||
| -15/45℃ | 4.25 | 5.45 | 6.70 | 7.90 | 11.00 | 13.70 | 15.80 | 20.8 | |
| -25/45℃ | 2.9 | 3.65 | 4.55 | 5.4 | 7.15 | 7.95 | 10.6 | 14.4 | |
| -35/45℃ | 1.65 | 2.05 | 3.3 | 4.15 | 4.45 | 4.7 | 5.6 | 8.75 | |
| suction/liquid coupling(mm) | ∅15.88/∅9.52 | ∅19.05/∅12.7 | ∅19.05/∅12.7 | ∅19.05/∅12.7 | ∅22.2/∅15.88 | ∅28.6/∅15.88 | ∅28.6/∅15.88 | ∅35/∅19.05 | |
| Overrall size | 960*370*810 | 960*370*810 | 960*370*1260 | 1590*600*1460 | 1590*600*1560 | 1590*680*1560 | 1590*680*1560 | 1810*680*1660 | |
| unit/weight | 30 | 35 | 55 | 68 | 120 | 128 | 138 | 145 | |
| Air cooler | Specification | MDLRD302-316.0 | MDLRD352-416.0 | MDLRD352-516.0 | MDLRD402-616.0 | MDLRD452-916.0 | MDLRD502-1016.0 | MDLRD552-1216.0 | MDLRD503-1516.0 |
| Supplier Power | 380V/3HP/50HZ | ||||||||
| Qty/Fan pcs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | |
| Motor power | 2*95w | 2*140W | 2*140W | 2*190W | 2*250W | 2*450W | 2*550W | 3*450W | |
| Overall dimension | 1280*460*471 | 1280*510*575 | 1280*510*575 | 1480*540*575 | 1800*630*679 | 2000*650*684 | 2000*670*788 | 2800*650*684 | |
Remark: The above unit selection reference may vary depending on the customer's specific usage conditions, such as the thermal insulation performance of the enclosure structure, the effective working volume of the cold storage, the outdoor ambient temperature of the cold storage, the incoming quantity and temperature of frozen/refrigerated goods, and the number of door openings, etc. This selection table is only for simple reference! Users should conduct detailed calculations based on their specific usage conditions to avoid selection deviations. | |||||||||
Temperature Arrange
● 0 ~ + 8 degrees: Fresh keeping (for most fruits, vegetables, such as large water content of food).
● 18 degrees: Cold storage (for seafood and meat after freezing).
● 25 degrees: Freezer (for food freezing with low freezing requirements or special food storage).
● 35 degrees: Quick-frozen (it is suitable for freezing most seafood, meat, etc).
Our Team
Factory Workshop
Product Packaging
FAQ
Q: How could I choose suitable refrigeration equipment?
A: Tell us your cold storage room size and temperature demand, and type of goods to be stored, cooling time, we have professional sales to make the best plan for you.
Q: Why does other suppliers price lower than us?
A: We use original new international compressor ensures high efficiency saving at least 20% annual energy loss.
Q: How can you help install refrigeration equipment?
A: We can also provide online guidance services for you to solve your worries, if in need, we will send engineer to your area.
Q: What are the payment terms?
A: We support 30% deposit in advance and the balance 70% T/T will be paid before shipment. Payment terms for engineering projects will be discussed separately
