Evaporative Cooling Integrated cooling machine Industrial Refrigeration Equipment Factory of Evaporative Cooling condensing unit Evaporative integrated cooling chiller

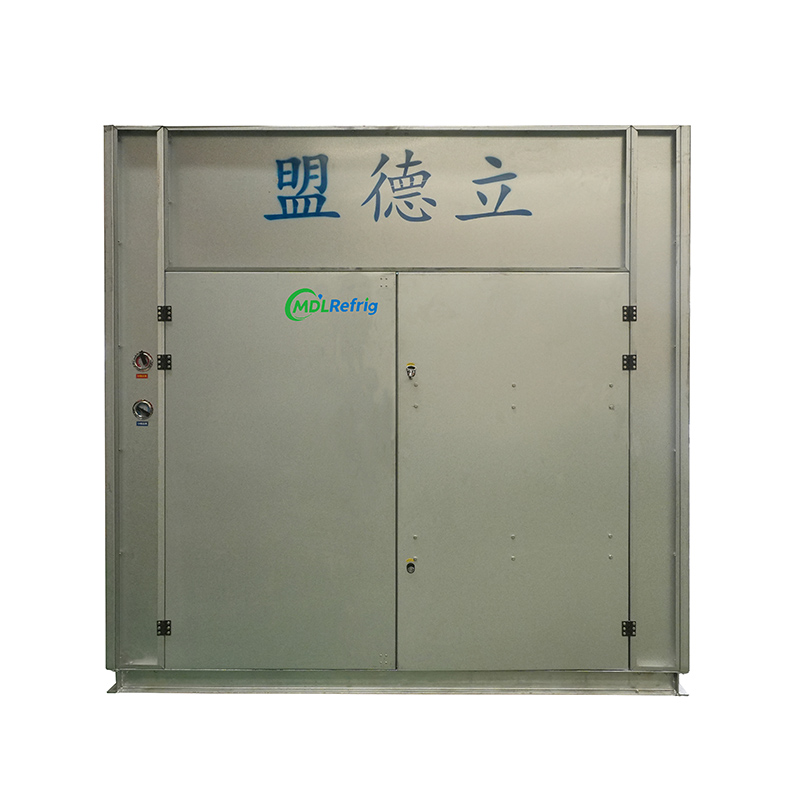

Mondely Refrig evaporative cooling condensing unit adopts evaporative condensing method, which can effectively reduce condensing temperature and increase cooling capacity. It can be divided into evaporative cooling condensing unit and evaporative cooling integrated condensing unit. Its evaporative condensing unit ranges from 45KW to 1920KW, and the application range is +12.5～-65℃ to meet the needs of different application scenarios. It is used in medium and large cold storage, cold chain logistics, industrial ice making, food processing, workshop cooling, farm product preservation, new energy, industrial refrigeration and other fields

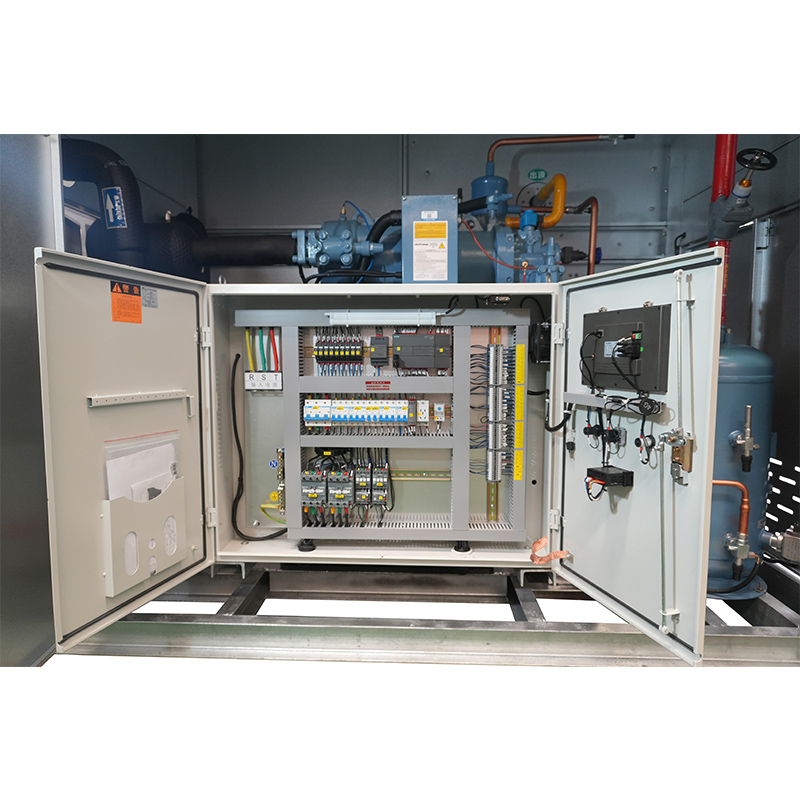

Customizable ;High refrigeration efficiency, Integrated design,Easy installation;Remote monitoring and intelligent control

The selection of the units will be based on the actual situation of the customer, MDL will provide professional and cost-effective solutions to meet the needs of the customer!

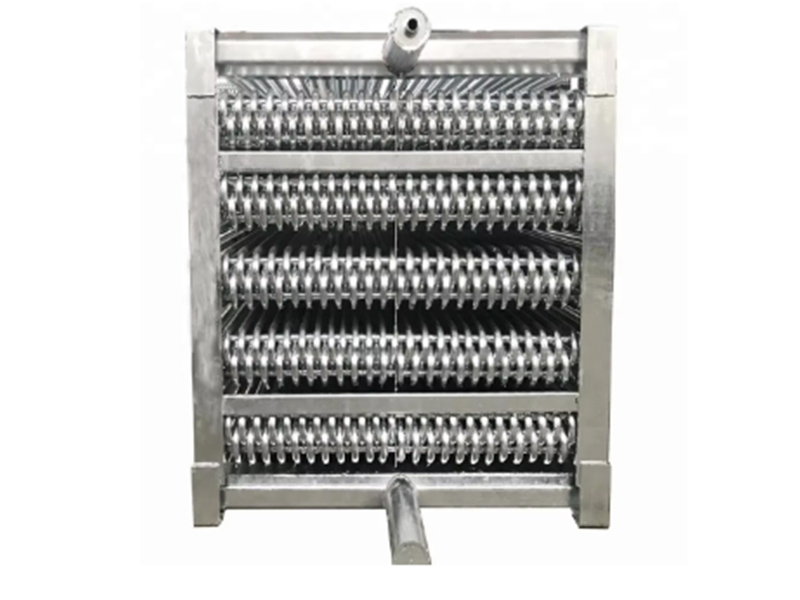

Heat exchanger coils

The heat exchanger coils are formed by automatic bending of high-frequency welded tubes, with elliptical tubes arranged in an alternating pattern to enhance air turbulence and improve heat transfer efficiency. The coils are inclined along the refrigerant flow direction to facilitate oil drainage from the tubes and refrigerant liquid discharge, thereby reducing coil pressure drop. The heat exchanger coils undergo three 2.5 MPa pressure tests to ensure no leaks. The coil assemblies are acid-washed and then undergo overall hot-dip galvanization to enhance corrosion resistance.

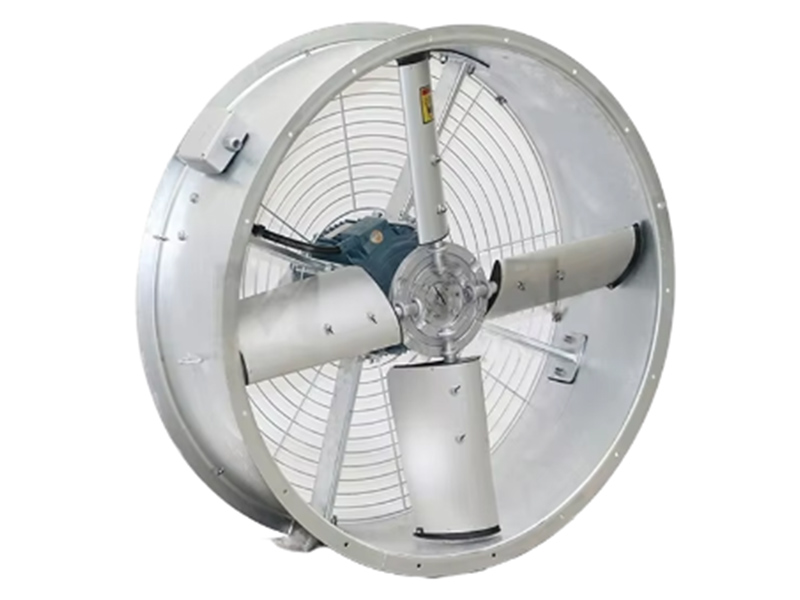

Axial fan

Specialized axial flow fan with high-strength nylon impeller (or aluminum alloy impeller) for high flow rate and low noise. Streamlined inlet duct with removable protective grille on the outlet side. Entire unit undergoes hot-dip galvanization for excellent corrosion resistance. Direct-coupled motor drive with outdoor-specific motor for low noise and excellent waterproof performance.

Water pump

Specialized circulating water pump with high flow rate, low head, and high efficiency. The high-flow pump ensures a continuous water flow over the surface of the heat exchanger coils, thereby reducing the likelihood of scale buildup without the need to increase power. The pump body and motor are designed with a rear-pull mechanism, facilitating installation and maintenance. The pump shaft is made of stainless steel to reduce wear on the shaft seal and prevent leakage.

Reduce air recirculation

Significantly increase the height ratio of the equipment to effectively reduce the backflow of hot, humid air into its fresh air inlet. Improve the heat exchange efficiency of the equipment. At the same time, increase the height of the air inlet to allow the spray water to come into contact with the air for a longer period of time during its descent, resulting in more thorough heat exchange. This effectively lowers the water temperature in the tank, and the lower water temperature makes it easier for scale-forming substances to remain in the water rather than precipitating onto the coils.

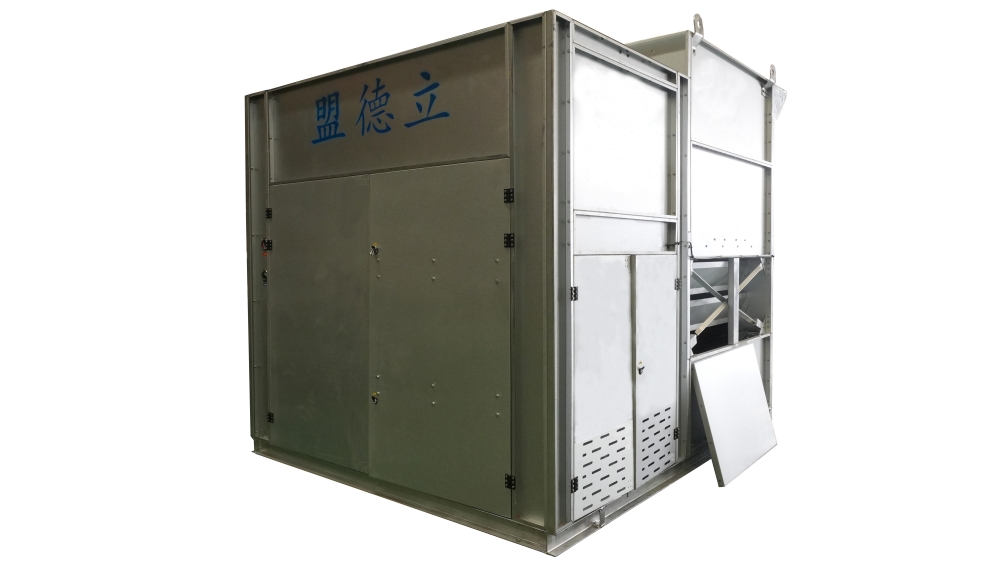

Corrosion-resistant box body

The enclosure housing is made of hot-dip galvanized 55% aluminum-zinc sheet (AZ150) or hot-dip galvanized aluminum-magnesium sheet (ZM275). The enclosure joints feature a double-flange folded edge structure design, sealed with butyl synthetic sealant strips. This enhances strength and overall sealing performance. All cut edges of the panels are coated with epoxy zinc-rich paint containing 95% zinc to enhance the corrosion resistance of the panels.

We provide online technical support and online on-site after-sales service, and unless otherwise agreed before quotation, free parts ONLY include metal frame fixed to the bottom of the cooler which is easy for the buyer to unload the cooler from the container.

If you just need spare parts separately, you could get suitable model and price with the shortest time from us!

Q: How could I choose suitable refrigeration equipment?

A: Tell us your cold storage room size and temperature demand, and type of goods to be stored, cooling time,we have professional sales to make the best plan for you.

Q: Why does other suppliers price lower than us?

A: We use original new international compressor ensures high efficiency saving at least 20% annual energy loss.

Q: How can you help install refrigeration equipment?

A: We can also provide online guidance services for you to solve your worries,if in need, we will send engineer to your area.

Q: What are the payment terms?

A: We support 30% deposit in advance and the balance 70% T/T will be paid before shipment. Payment terms for engineering projects will be discussed separately
